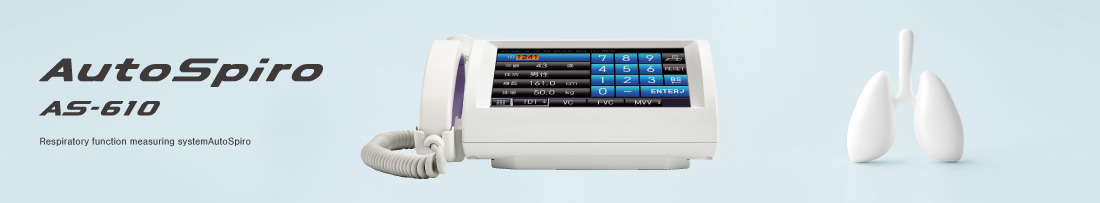

AutoSpiro [AS-610]
![AutoSpiro [AS-610]](https://www.minato-med.co.jp/cms/wp-content/uploads/2024/01/as610banaE.jpg)
- Features
- Function
- Design
- Specifications
Compact body
Compact body
A variety of functions realized in a compact body(180mm x 240mm) will meet a variety of needs.
Main features of AS-610
①Flow sensor
The accuracy of respiratory function measurements depends on the characteristics of the flow sensor. The AS-610 uses a highly accurate hot wire flowmeter method, which allows measurement with an accuracy of ±3% even at low flows.
②Handle
By adopting an oval handle, it is now possible for the examiner to assist test subjects who have difficulty holding the handle during measurement due to their weak grip strength.
③Printer
It is now possible to print 1.5 times faster than previous models. You can also keep paper-based records and paste them on the medical record.
④7 inch LCD touch panel
VC measurement screen
The operation keys and display contents have been enlarged to improve operability. In addition, the high-contrast interface design provides good visibility and supports operation.
⑤2P power plug
The adoption of a 2P power plug makes it easier to perform measurements outside the testing room. Contributes to measurements during home visits, etc.
LED tower
※AS-610U exclusive options
Visualize measurement status with LED tower
By displaying the degree to which the target value has been reached in real time, it is easier to explain the test in advance and encourage the subject to exhale/inhale with forced effort during the test.
Respiratory muscle meter
※AS-610U exclusive options
Respiratory muscle strength measurement
In recent years, the importance of respiratory rehabilitation has increased in order to prevent postoperative respiratory complications and shorten hospital stays. By measuring respiratory muscle strength, it is possible to assess whether the decrease in FEV1 (Forced expiratory volume in 1 second) is due to airway obstruction or respiratory muscle weakness.
Disinfectable parts
Flow sensor & respiratory muscle strength meter
In consideration of hygiene issues such as preventing infectious diseases, the tip can now be removed and sterilized. Parts can be removed and soaked in disinfectant solution. It can be disinfected after each test, so it can always be kept clean.
Dedicated bag
※Option
Assistance with home visits
The AS-610, which weighs 1.0 kg and is easy to carry, is available with a dedicated bag to assist with home visits. The dedicated bag allows examinations without removing the main unit, eliminating the need to load and unload the instrument.
Environmental sensor
※AS-610U exclusive options
AAM613 Environmental sensor (temperature, humidity, atmospheric pressure)
Automatic input of environmental conditions
Accurate measurements require the input of environmental conditions (temperature, humidity and atmospheric pressure). When the environmental sensor is connected, all environmental conditions are automatically input.
Handle
Oval shaped handle
The handle has an oval design to fit all hand sizes.
Interface
Selectable text contrast
By selecting the contrast of the text, some stress such as "thin text is difficult to read" or "bold text is difficult to read" are relieved.
Bag
※Option
Efficient storage space
The efficient storage space accommodate not only the main unit but also the accessories necessary for the test. After storage, it can also be stored vertically.
Specifications
| Model name/Brand name | AutoSpiro ＡＳ－６１０ |
|---|---|
| Electric shock protection | Class II equipment, Type B applied part |
| Rated power supply voltage and frequency | AC 220 V 50/60 Hz |
| Power input | 50 VA |
| Dimensions of main unit | W: 240 D: 180 H: 105（mm） |
| Weight of main unit | 1.0 kg |
| Flow sensor | Hot wire |
| Measurement range | Flow: -14.0 ～ 14.0 L/s Volume: -10.0 ～ 10.0 L （Option） Respiratory muscle strength: -35.0 ～ 35.0 kPa |
| Measurement accuracy | Volume: Within ± (3 % + 0.01 L) of indicated value (Option) Respiratory muscle strength: Within ±1 % of full scale |
| Printer | Line thermal, Paper width 57.5 (mm) |
| Measurement item | VC ： Pre: 3 pages Post: 3 pages FVC ： Pre: 3 pages Post: 3 pages MVV ： Pre: 1 page Post: 1 page MV ： 1 page |
| GOLD compliant stage classification supported. Adoption of lung age indication by the Japanese Respiratory Society. |
|
| Measurement memory | 30,000 cases |
Standard accessories
| Product name | Quantity |
|---|---|
| Mouth filter PIF-2A, 20 pieces | 1 box |
| Recording paper | 1 roll |
| Nose clip, 5 pieces | 1 bag |
Consumables
| Product name | Part code | Quantity |
|---|---|---|
| Mouth filter PIF-2A, 20 pieces | MOU9404 | 1 box |
| Recording paper | YOU9336 | 1 box |
| Nose clip, 5 pieces | AZZ417 | 1 bag |
Option item
| Product name | Part code | Quantity |
|---|---|---|
| LED tower | AAM615※ | 1 |
| Respiratory muscle meter (with holder) | AAM609※ | 1 box |
| Environmental sensors (temperature, humidity, atmospheric pressure) | AAM613※ | 1 |
| Dedicated bag | VCV9489 | 1 |
| Calibrator（3L） | ACA236 | 1 |
| Calibrator（2L） | ACA105 | 1 |
| Calibrator（1L） | ACA201 | 1 |
| Silicone mouthpiece | MOU9353 | 1 |
| Isolated USB serial conversion box | AAM617※ | 1 |
| SpO2 meter connection box | AAM180※ | 1 |
| Mouthpiece, 100 pieces | MOU9029 | 1 box |
| Mouthpiece adapter | AAM611 | 1 |
*This is an optional item exclusively for AS-610U.
・Options are subject to change without notice.
Lineup
-
AS-610U USB2.0×2,LAN(RJ45)×1
-
AS-610
Drawing
（Unit: mm）
